Resin, Figure 4 Rigid 140C Black, 1 kg

High Performance Photopolymer Suitable for Underhood and Electrical Components

*FEDEX shipment and cost will be added to the final invoice

Figure 4^® Rigid 140C Black delivers on the promise of additive manufacturing with true functional durability in plastic parts. A two-part epoxy/acrylate hybrid material, Figure 4 Rigid 140C Black production-grade parts feature long-term mechanical stability in various environments.

This innovative material, made with patented filler, provides toughness comparable to injection molded polybutylene glass fiber (PBT GF).

Under-the-hood components produced with Figure 4 Rigid 140C Black demonstrate excellent reliability when subjected to high temperature operating life (HTOL) testing. These parts also demonstrate good part-to-part friction. This is an ideal material for industrial applications such as levers, knobs, and clutches, as the material maintains its structural properties. Figure 4 Rigid 140C Black was tested to the equivalent of eight years indoor and one and a half years in outdoor environments per ASTM D4329 and ASTM G195 methods.

Applications

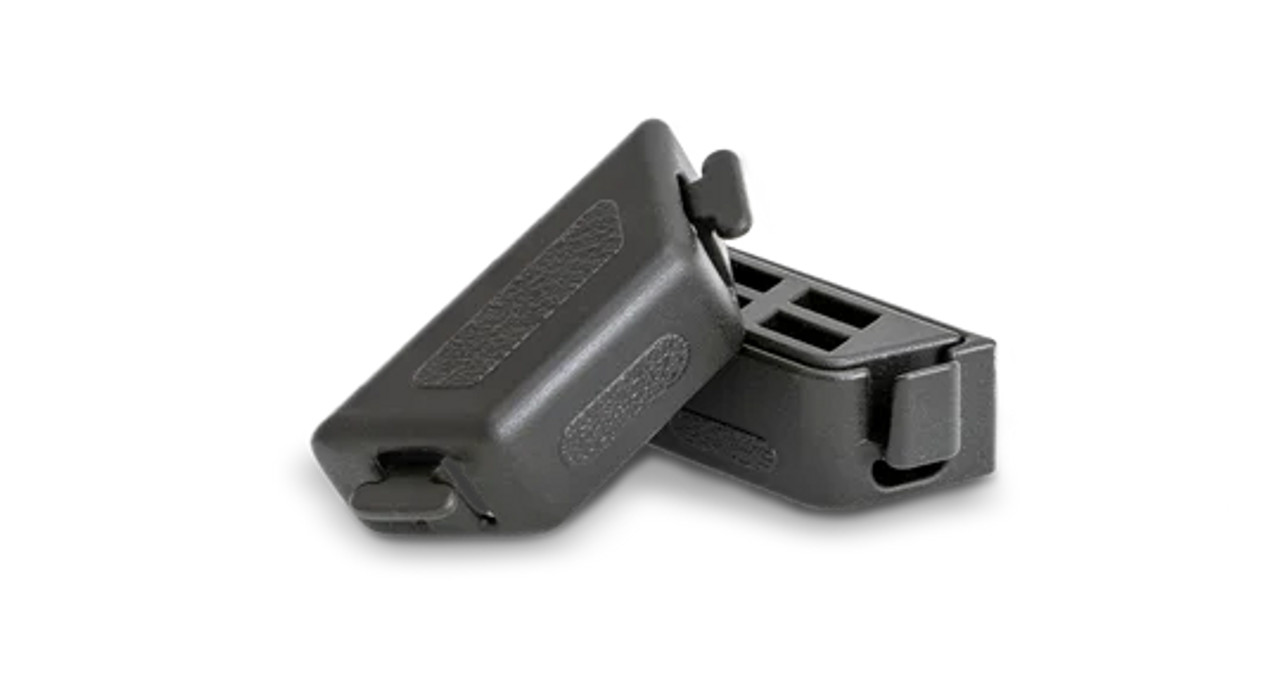

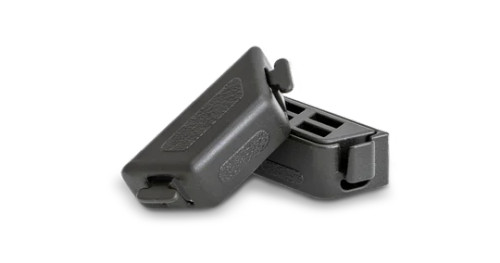

• Automotive under-the-hood and in-cabin components
• End-use clips, covers, connecters, housings and fasteners

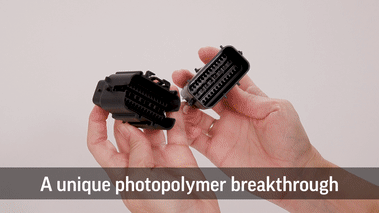

• Electrical latching and board connectors

Benefits

• Parts can withstand years of indoor UV and humidity exposure with minimal degradation to dimensional stability or functional performance
• Surface finish comparable to injection molding
• Suitable for repeated snap-fit use without deformation

Compatible Printer(s)

• Figure 4

Product Number:

420123-951

Brand

3D Systems

Availability:

Ex Stock usually ships in 24 hours
